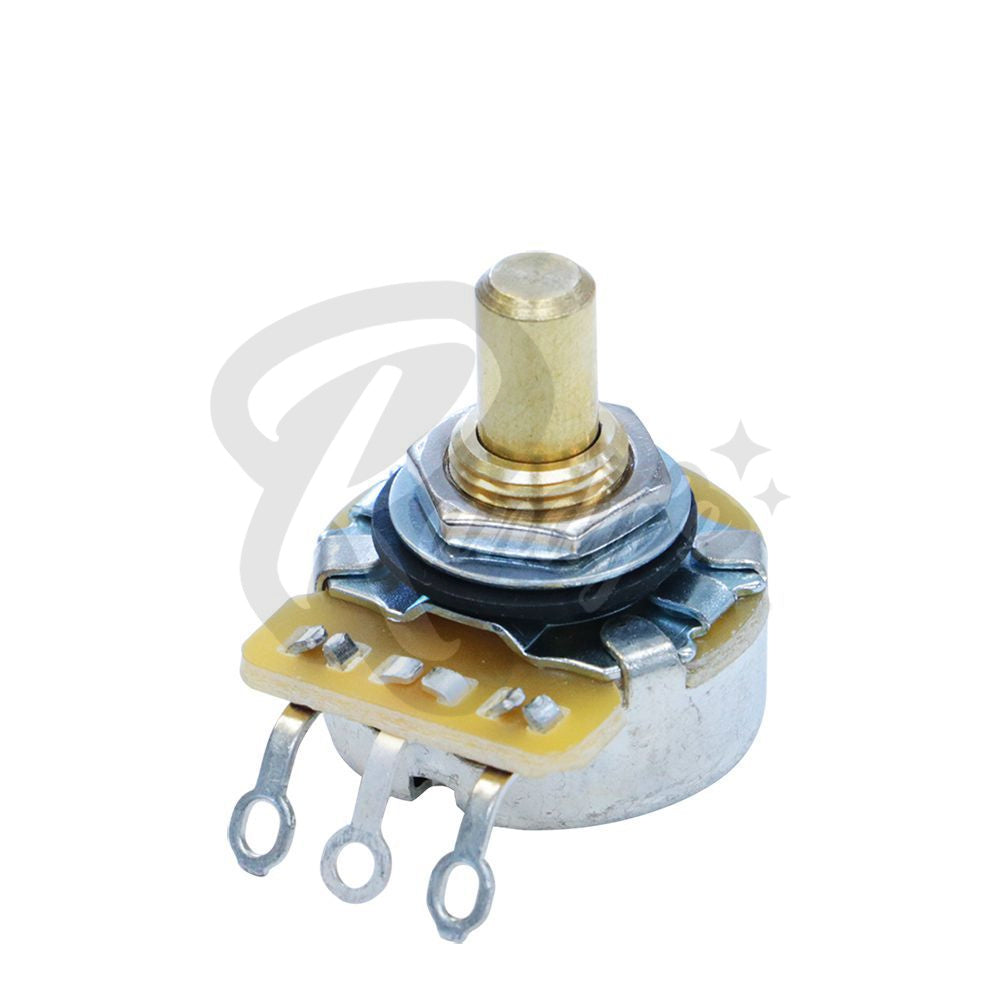

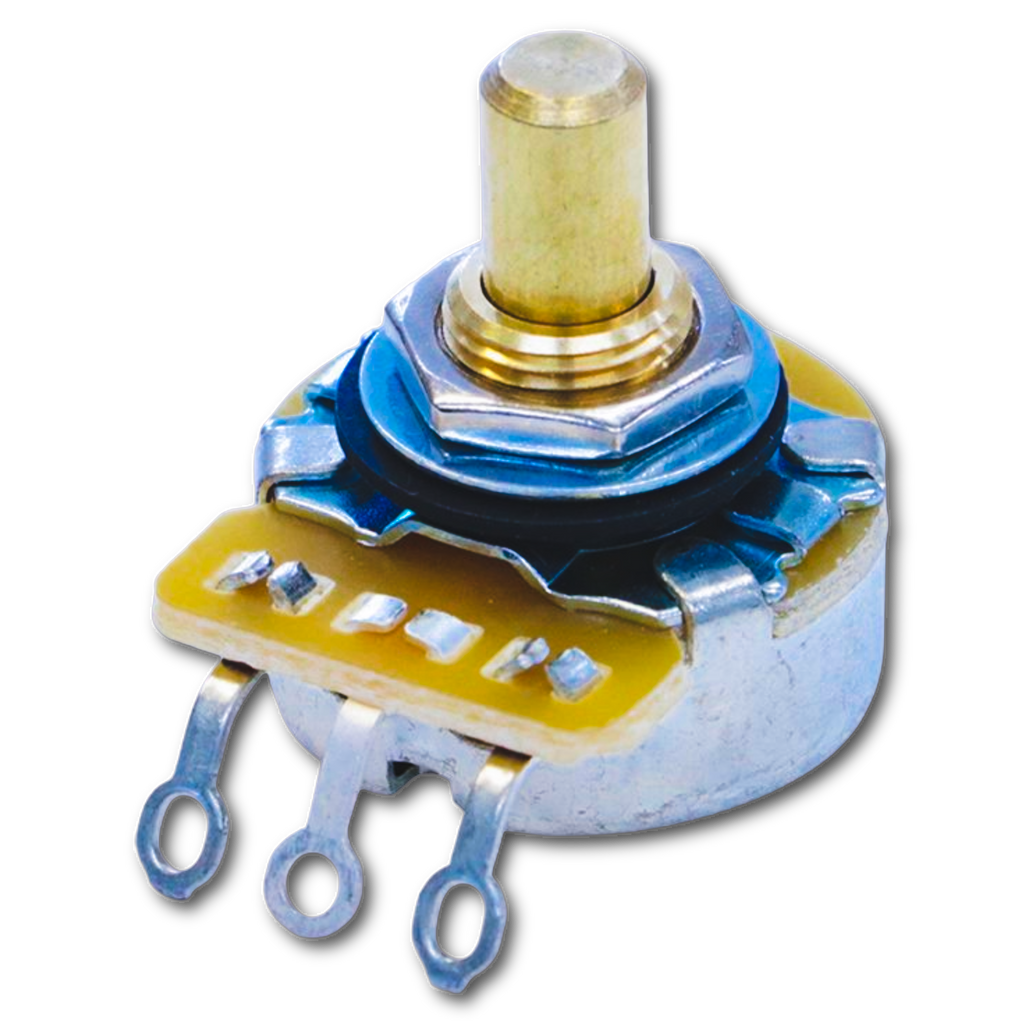

Vintage 550K Ω Potentiometer for Bass & Humbucker Pickups (Solid Shaft) - Fits Fender® Telecaster®

Individual CTS® 550K Ω (ohm) potentiometer (pot) for bass and electric guitar. Fits Fender® and Squire® Stratocaster®, Telecaster®, J Bass, P Bass® and more. Includes mounting hardware.

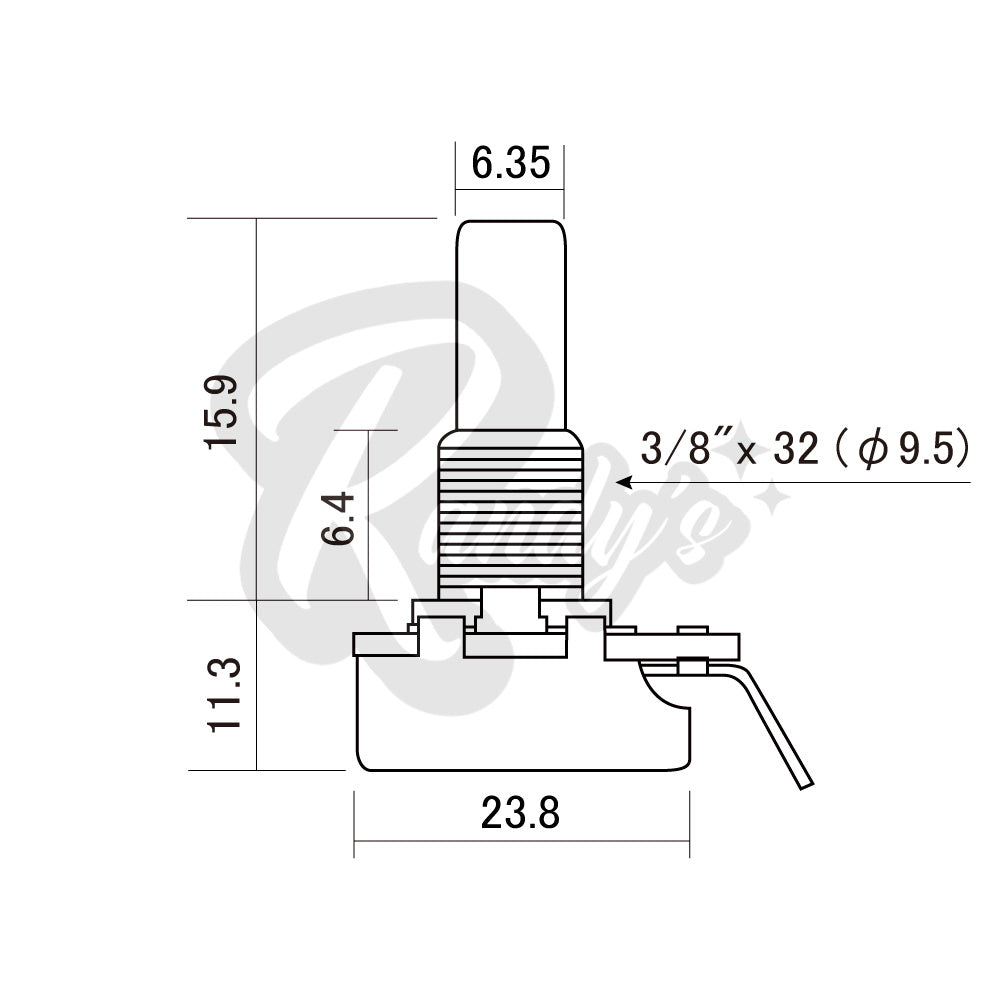

• Body Diameter: 24 mm
• Power Rating ¼ watt
• Bushing Diameter: ⅜"
• Bushing Length: ⅜"

• Bushing Threading: ⅜-32
• Country of Manufacture: Taiwan
• Required Mounting Hole: ⅜"
• Shaft Diameter: ¼"
• Shaft Length: ⅜"
• Shaft Material: Brass
• Shaft Size: Solid Shaft
• Taper: Audio
• Tolerance: ±9%

Ohm Ω Usage Guide

• 25KΩ
  • Active Pickups
• 250KΩ
  • Single Coil Pickups & Passive Bass Pickups
• 275KΩ
  • Vintage Gibson® Single Coil Pickups
• 500KΩ
  • Humbucker Pickups & Passive Bass Pickups
• 550KΩ
  • Vintage Gibson® Humbucker Pickups

Bushing Usage Guide

• ¼" for pickguard mounting on Fender® Strat® & Tele®
• ⅜" for body mounting on Gibson® Les Paul® Junior & Special, SG® & more
• ¾" for carved-top body mounting on Gibson® Les Paul®
